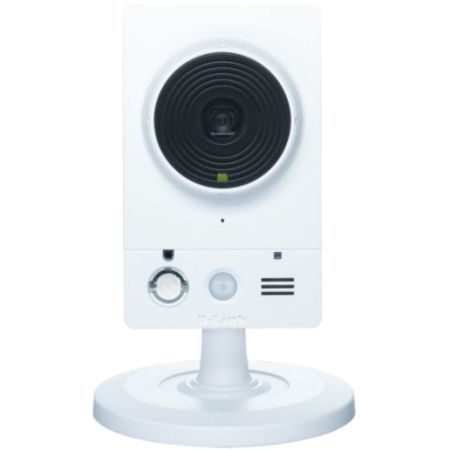

D-Link DCS-2230 Network Camera - Color Item # 891862
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
891862
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The DCS-2230 is a versatile surveillance solution that is perfect for monitoring low-light environments in your home or small office. It combines a high-resolution 2 Megapixel sensor with a built-in IR LED to help you keep watch over areas in complete darkness. The DCS-2230 also includes a built-in IR cut filter, making it suitable for both day and night applications. Additionally, the DCS-2230 is a complete system with a built-in CPU and web server that transmits high quality video images for security and surveillance. Simple installation and an intuitive web-based interface offer easy integration with your Ethernet or 802.11n wireless network. The DCS-2230 also comes with remote monitoring and motion detection features for a complete and cost-effective home security solution.The DCS-2230 includes 802.11n wireless for fast and easy integration into your existing network environment. Wireless N allows you to stream high-quality video to remote sites and mobile devices. A Site Survey feature also allows you to view and connect to nearby wireless networks with ease. The DCS-2210/2230 also includes a standard Ethernet port for connections to traditional wired networks.The ePTZ feature allows users to select a target region for close-up viewing simply by clicking on the video feed displayed within their browser. ePTZ makes use of the camera's 2 mexapixel resolution to survey a large area effortlessly. Since ePTZ requires no moving parts, there is no need to worry about the camera having mechanical failures.This network camera supports the Universal Plug-n-Play feature, which allows computers running on Windows XP/Vista/7 to automatically recognize the camera and add it to the network. Sign up with one of the free Dynamic DNS services available on the web to assign a name and domain to the camera (e.g. mycamera.dlinkddns.com), and remotely access the camera without having to remember your IP address. You may also view up to 32 cameras from a central location using the included D-ViewCam software. D-ViewCam has a robust set of features including automated e-mail alerts which can instantly inform administrators of suspicious or unusual activities.The Open Network Video Interface Forum (ONVIF) is standards relating to open IP video networking. DCS-2230 is ONVIF compliant and therefore interoperable with other manufacturer's products on the same network such as cameras, storage systems, video analytics products and Video Management Systems.The included D-Link D-ViewCam (DCS-100) is a sophisticated video management software which enables you to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and trigger motion detection to record directly to your hard drive or network folder. D-ViewCam also allows you to upload a floor plan of your premises, and create a realistic layout according to the locations of your cameras, further simplifying the management process.
Product Details
| Item # | 891862 |
| Manufacturer # | LK9490 |
| Image Sensor Type | CMOS |
| Ethernet Technology | Fast Ethernet |
| Color Supported | Color |
| height | 3.8 in |
| Alarm Outputs Qty | 1 |
| Focus Modes | Fixed Focus |
| Features | Day/Night; Built-in IR LED; Motion Detection; Built-in Microphone; Built-in Speaker; Built-in Infrared Illuminator; Privacy Masking |
| Remote Management | Yes |
| video formats | MPEG-4; Motion JPEG |
| Connectivity Technology | Wireless; Cable |
| Protocols | TCP/IP; UDP; ICMP; DHCP; NTP; DNS; DDNS; SMTP; FTP; HTTP; HTTPS; PPPoE; UPnP; RTP; RTSP; RTCP; 3GPP; IGMP |
| width | 5.1 in |
| Security Features | Password authentication; HTTP and RTSP Digest Encryption; Administrator and user group protection; WEP/WPA/WPA2 security; WPS (Wi-Fi Protected Setup) push-button |
| digital zoom | 10x |
| Aperture Range | f/2 |
| depth | 3.2 in |
| Product Name | DCS-2230 Network Camera |
| manufacturer | D-Link Systems, Inc |
| Alarm Inputs Qty | 1 |
| Lens Included | Yes |
| Application/Usage | Indoor |
| weight | 2.82 oz |
| Maximum Power Consumption | 2.50 W |
| HD Recording | Yes |
| Wireless LAN Standard | IEEE 802.11b/g/n |
| Maximum Operating Temperature | 104°F (40°C) |
| brand name | D-Link |
| wireless technology | Wi-Fi |
| Image Formats | JPEG |
| Ethernet | Yes |
| Maximum Video Resolution | 1920 x 1080 |
| focal length | 4.37 mm |
| Network (RJ-45) | Yes |
| Illumination | Minimum 0 Lux |
| Minimum Operating Temperature | 32°F (0°C) |
| operating system compatibility | Operating Systems: Microsoft Windows 7/Vista/XP/2000, Apple MAC OSX 10.3 or above, Linux, Unix; Browsers: Internet Explorer, Firefox, Netscape, Opera |
| color | white |
| warranty length | 1-year limited |
| model name | DCS-2230 |
| viewing angle | 40.8° to 75° |
| Show More ▾ |
Customer Reviews
Product Q & A
From the Manufacturer|
Description
-
24/7 Camera Surveillance
The DCS-2230 Full HD Wireless N Cube Network Camera is a versatile surveillance solution
that is perfect for monitoring low-light environments in your home or small office. It combines a high-resolution 2 Megapixel sensor with a built-in IR LED to help you keep watch over areas in complete darkness. The DCS-2230 features 802.11n wireless, allowing the camera to be placed anywhere within range of your wireless network. The DCS‑2230 also offers simple installation, an intuitive web-based interface, and remote monitoring and motion detection features for a complete and cost-effective home and business security solution. -
Product Highlights
- 2 Megapixel - Full HD Resolution- High-resolution Full HD 1080p video ensures that you capture the details that you need.
- Reliable 24-Hour Surveillance- Infrared LED illuminator provides clear video at night for dependable 24-hour surveillance.
- High-Quality Video Feeds- Real-time video compression using the H.264, MPEG-4 and MJPEG codecs.
See More:
Features
-
Wireless N Connectivity
The Wireless N Technology on the DCS-2230 provides you with fast, reliable wireless connection so you can view the live video feeds from your camera anywhere, anytime. The Site Survey feature also allows you to view or connect to a nearby wireless network with ease. The DCS‑2210/2230 also includes a standard Ethernet port for connections to traditional wired networks. -
Flexible Connectivity
The DCS-2230 includes input and output ports allowing connectivity to external devices such as IR sensors, switches, and alarm relays.ePTZ For Surveying Regions Of Interest
The ePTZ feature allows users to select a target region for close-up viewing simply by clicking on the video feed displayed within their browser. ePTZ makes use of the camera’s 2 megapixel resolution to survey a large area effortlessly. Since ePTZ requires no moving parts, there is no need to worry about the camera having mechanical failures. -
D-ViewCam™ for Management
The included D-ViewCam™ IP camera surveillance software is a comprehensive surveillance system designed to centrally manage multiple IP cameras. Supporting up to 32 IP cameras, D-ViewCam™ is compatible with all current D-Link IP cameras and offers digital monitoring and recording capabilities of video, audio, and events for various security applications. The D-ViewCam™ software is included free of charge with the DCS-2230. -
Open Network Video Interface Forum (ONVIF)
ONVIF is an open industry forum for the development of a global standard for the interface of IP-based physical security products. ONVIF identifies a standard for how IP products within video surveillance and other physical security areas can communicate with each other ensuring interoperability between products regardless of brand. The DCS-2230 is ONVIF-compliant and therefore compatible with many third party Video Management Software (VMS) solutions.Easy to Configure and Operate
This network camera supports the Universal Plug-n-Play feature, which allows computers running on Windows XP/Vista/7 to automatically recognize the camera and add it to the network.
Technical Features
• 2 Megapixel CMOS Sensor
• Real-time H.264, MPEG-4, and Motion JPEG compression
• Full HD resolution up to 1920 x 1080
• Fixed lens 4.37 mm f2.0, 67° Field of View
• Built-in mechanical IR cut filter for day/night surveillance
• Built-in IR LED for no-light environments
• Built-in PIR (Passive Infrared) sensor for accurate motion
detection
• Simultaneous multi-stream support
• ePTZ
• Integrated microphone & speaker
• Privacy Mask feature
• microSD Card slot
• 2-way audio support
• 1 digital input / 1 digital output
• IEEE 802.11n
• WPS
• WEP / WPA / WPA2 wireless security
• 3GPP mobile surveillance
• Built-in Samba client for NAS
• ONVIF-compliant
Specifications
Camera | |
| Hardware Profile
| • 1/2.7” 2 Megapixel progressive CMOS sensor • IR Illumination distance: 5 m • Minimum illumination: 0 lux with IR illumination • Built-in Infrared-Cut Removable (ICR) filter module • Built-in PIR (Passive Infrared) sensor • 10x digital zoom • Fixed length: 4.37 mm • Aperture: F2.0 |
| Field of View | • (H)67.4° / (V) 40.8° / (D) 75° |
| Image Features
| • Configurable image size, quality, frame rate, and bit rate • Time stamp and text overlays • Configurable motion detection windows • 3 configurable privacy mask zones • Configurable white balance, shutter speed, brightness, saturation, contrast, and sharpness |
| Video Compression
| • H.264/MPEG-4/MJPEG simultaneous format compression • JPEG for still images |
| Video Resolution
|
• 16:9 - 1920 x 1080 (up to 15 fps), 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 up to 30 fps |
| Audio Support
|
• G.726 • Built-in microphone and speaker |
| External Device Interface
| • 10/100 BASE-TX Ethernet port (with PoE for DCS-2210 only) • 802.11n wireless (DCS-2230 only) • 1 DI / 1 DO • microSD card slot |
Network | |
| Network Protocols
| • IPv4 • TCP/IP • UDP • ICMP • DHCP Client • NTP Client (D-Link) • DNS Client • DDNS Client (D-Link) • SMTP Client • FTP Client • HTTP / HTTPS • Samba Client • PPPoE • UPnP Port Forwarding • RTP / RTSP/ RTCP • IP filtering • 3GPP • IGMP • ONVIF-Compliant |
| Security
| • Administrator and user group protection • Password authentication • HTTP and RTSP digest encryption |
System Management | |
|
System Requirements for Web Interface | • Operating System: - Windows® 7, Windows Vista®, Windows® XP, Windows® 2000 • Browser: - Internet Explorer, Mozilla Firefox, Netscape, Opera |
| Event Management
| • Motion detection • PIR motion detection • Event notification and upload snapshots/video clips via HTTP, SMTP, or FTP • Supports multiple HTTP, SMTP, and FTP servers • Multiple event notifications • Multiple recording methods for easy backup |
| Remote Management | • Configuration accessible via web browser • Take snapshots/video clips and save to local hard drive or NAS via web browser |
| D-ViewCam™ System Requirements
| • Operating System: Microsoft Windows 7/Vista/XP • Web Browser: Internet Explorer 6 or higher • Protocol: Standard TCP/IP |
| D-ViewCam™ Software Functions
| • Remote management/control of up to 32 cameras • Viewing of up to 32 cameras on one screen • Supports all management functions provided in web interface • Scheduled motion triggered or manual recording options |
General Specifications | |
| Power Input | • 12V DC 1.2 A, 50/60 Hz, PoE |
| Max. Power Consumption | • 4 watts |
| Environment | • Indoor Use Only |
| Operating Temperature | • 32 to 104° F (0° to 40° C) |
| Storage Temperature | • -4° to 158° F (-20° to 70° C) |
| Humidity | • 20% to 80% non-condensing |
| Weight | • 0.16lbs (75 grams) |
| Certifications
| • CE • LVD (EN60965-1) • FCC (Class B) • C-Tick |
| Dimensions
| • Length: 3.9” (97mm) • Width: 3.2” (82mm) • Height: 5.1” (128.6mm)
|
Warranty | |
| Warranty | •1-Year Limited1 |
Order Information | |
| |
1 1-Year Limited Warranty available only in the USA and Canada. All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
